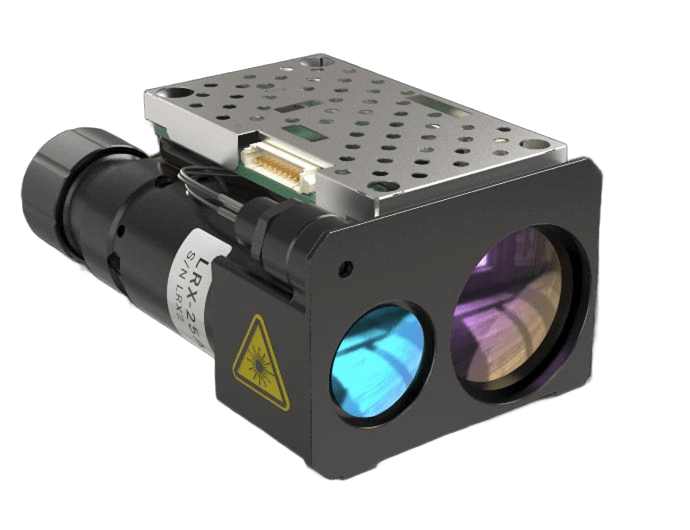

The compact, eye safe and highly integrated LRF rangefinder module is utilized in various applications from versatile systems to handheld devices. The module is delivered without enclosure enabling OEM-users to embed the module into their own system or device.

Features

• Ranging capability 32 km
• Performance to std NATO target 12 km
• Measurement rates up to 500 Hz
• Precision 0.01 – 0.5 m
• Wavelength 1.5 μm
• Beam divergence 0.35 mrad
• Weight 136 g
• Dimensions W 53, H 37, L 88 mm
• Default serial Interface RS422
• RS232 / UART 3.3V CMOS interfaces available on request
• Power consumption < 3.6 W
• In stand-by mode < 0.2 W
• Eye safe, Laser Class 1
• Class 1M available on request

Applications

• Reconnaissance
• Observation & surveillance
• Border and port control
• Off-shore rescue
• Naval systems
• Drone & UAV gimbals
• Handheld devices
• Vehicle mounted systems
